Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

Product Categories
Shandong Gelon Lib Co., Ltd
Contact Now

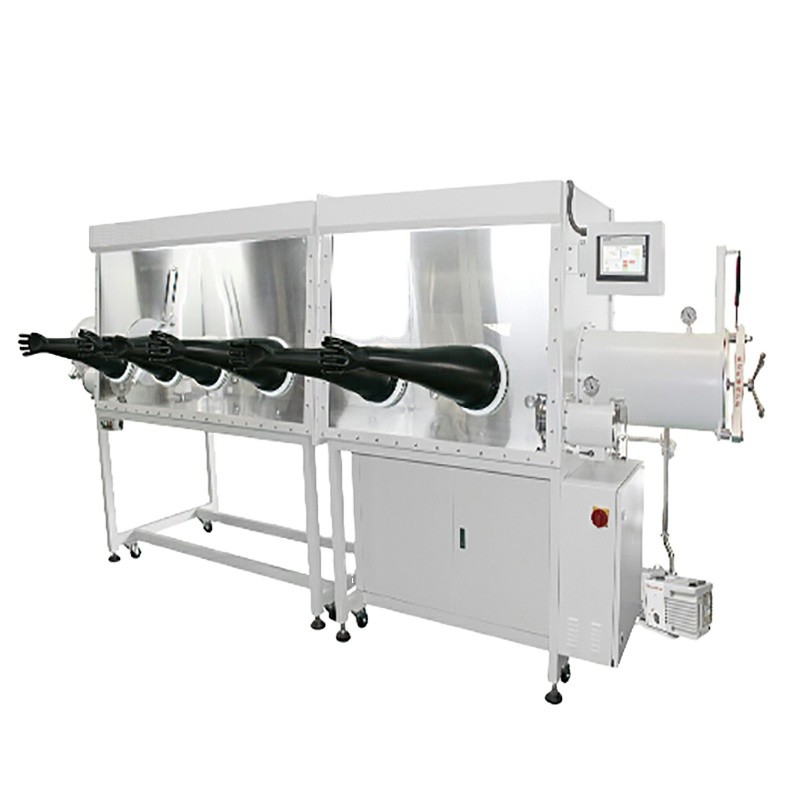

Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

  • 1
  • 2

Brand Name : Gelon

Model Number : GN-GB-1

Certification : CE

Place of Origin : China

MOQ : 1set

Price : $22000-$23000/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000sets/month

Delivery Time : within30 days

Packaging Details : wooden box

Product Name : Battery Research Vacuum Glove Box

H2O & O2 : less than 1ppm

leakage rate of box : 0.05 vol％/h

Inclined window : sight safety glass, thickness 8 mm

Gloves Type : Butyl, thickness 0.4mm

Glove Dia : 8 inch, length 32 inch

Dust filter : 0.3 micron

DN 40 KF : 3 pieces for customers’ usage

Contact Now

Battery Equipment Single Station Chamber Vacuum Glove Box Dry Gas Station Purification System H2O&O2 Less Than 1ppm

GN-GB-1 is a dual stainless steel glove box designed for researchers in material science, chemistry, semiconductor, and related topics. The purification cylinder is made of BASF antioxidant materials from Germany and UOP water adsorbent materials from the US in order to achieve a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in an ultra clean and highly purified gas environment. It is integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, auto alarm, and system data log recording.

Working Voltage
220V 50/60Hz, Single Phase
Glove Box Chamber &
Airlock Chamber
* Case Material: Made of 304 stainless steel sheet
* Inner Dimensions: 1220*750*900mm
* Max. Positive Pressure: 810 Torr ( flowing gas only, not designed for vacuum )
* Airlock Chamber with Airlift
* Dimensions: OD360*600mm
Gloves
* Glove Port size: 70mm(Dia.)
* 2'' Gloves included (with increased stretching, bending ability and tear strength, and offer strong resistance to aromatics,
hydrocarbons, solvents, fats, and acids)
* Clamps and sealing flanges included
Transparent Front Panel
* Front Panel made of transparent plastic
* Dimension: 1200 mm(L) x 700mm(W)
* Removable for putting in devices
Purification System
* Automatic moisture remove to < 1 ppm (Li-Ion battery assembling requires <11 ppm moisture)
* Precision Humidity Analyzer with KF40 Flange is installed on the Purification System with accuracy +/-0.1 ppm
* Regeneration Temperature Controller is built-in for automatically regenerating the filter
* The automatic pressure control system is built in to keep the pressure at a constant level
* PLC touch panel is included which can set and display the humidity and pressure level.
* The control panel is removable, which can be placed anywhere for easy operation
Purification Pipeline
304 stainless steel, KF40 port
Vacuum pump
* Heavy-duty vacuum pump with filter is included for faster vacuum and removing moisture
* Stainless steel vacuum bellow and valve are included
Gasses Requirement
* Working gasses: Atmospheric Gases, N2, Argon
* Regeneration Gas: 95% N2 + 5%H2
* One float meter built on the front of a mobile cart for accurate gas filling
*Capacity: 90m3/h, frequency conversion
*Specification:8 m3 /h(12 m3 /h optional),Rotary pumpoil mist filter
Leakage Rate in Glove Box Chamber
< 3 Torr/hour
Warranty
* One-year limited warranty with lifetime support
* Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

Battery Research Single Station Chamber Vacuum Glove Box H2O O2 Less Than 1ppm

We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
Any more info, pls kindly contact :Ella@libgroup.net
